Base or rover · cameras
Reach RS4 Pro
AR stakeout and live cut/fill at the point. The rover a layout crew wants.
$4,599
View details
GPS for construction
GPS for construction layout, grade checks and cut/fill
Lay out foundations and footings, stake corners and offsets, and check grade yourself, from your phone. The Emlid Reach RS4 and RS4 Pro give a dirt-work or concrete crew centimeter-accurate RTK at a fraction of big-brand prices, from a dealer that runs them in the field.
- Free bumper + 1-year data SIM with every RS4 and RS4 Pro
- Plus 1 year FREE: Emlid RTK corrections
- Financing through Approve
- A real person at (901) 444-0804
The jobs a site crew uses it for.
FOUNDATIONS
Foundation and footing layout
Bring in your points or the CAD drawing, walk to each corner and footing, and set the stake where the screen says.
STAKEOUT
Corners, offsets and lines
Stake points and lines with the distance to go on the screen. Tilt compensation takes the shot with the pole leaning, right against a form or a wall.
GRADE
Grade checks and cut/fill
Check a pad, a subgrade or a ditch against the design surface and see the cut or fill at each point. The RS4 Pro shows it live at the point.
AS-BUILT
As-builts and topo
Shoot what was built, or the ground before you start, with photos attached, and export it for your engineer.
BASE
Your own base, no cell needed
Set an RS4 base on site and it talks to your rover over LoRa radio, even where there is no cell coverage.
The field app
Plan it in the office. Stake it from your phone.

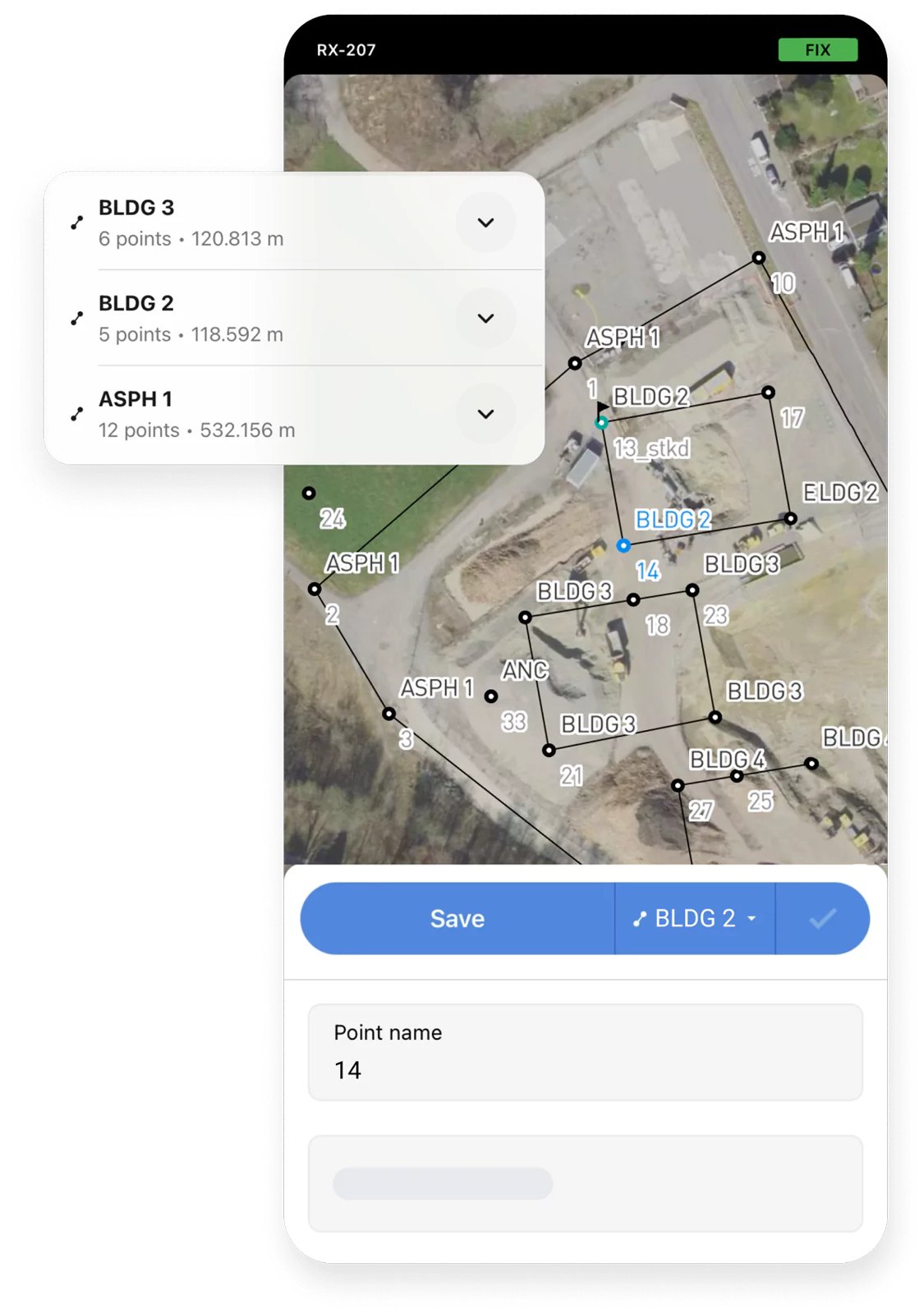

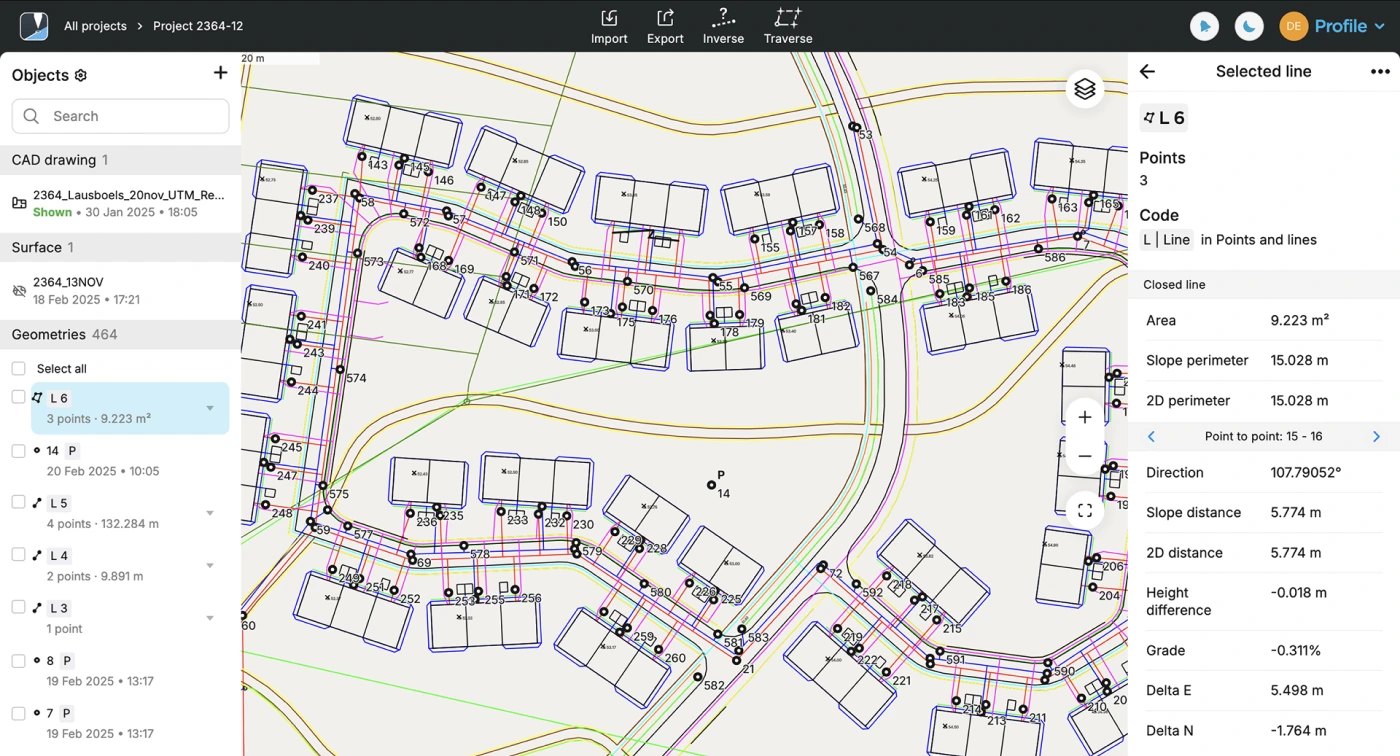

Emlid Flow runs your Reach receiver from a phone or tablet, and Emlid Flow 360 opens the same project in a web browser back at the office. Basic point collection and stakeout are free. CAD drawings and design-surface stakeout come with Emlid Flow Pro, and our Flow Pro bundle includes a year of it.
- Point and line stakeout
- CAD drawings on the map
- Design-surface stakeout with cut and fill
- Photos attached to your points
- Projects sync between field and office
- Also works with MicroSurvey FieldGenius
Pick your receiver
RS4 or RS4 Pro for site work?
Both stake out, check grade and run as a base or a rover. The RS4 Pro adds dual cameras: AR stakeout that shows the point on the live camera view, and cut/fill right at the point. Not sure? Call us.
Only from 3D Mapping Tools
Two extras with every RS4 and RS4 Pro, on us.
FreeRubber protection bumperFitted to your receiver.
Free1-year, 24 GB data SIMInstalled and tested in your base on request.
Plus 1 year FREE: Emlid RTK corrections
Base or rover
Reach RS4
The workhorse: LoRa, LTE and tilt, rated IP68. Stakeout and grade checks.
$3,899
View details
Base · lower cost

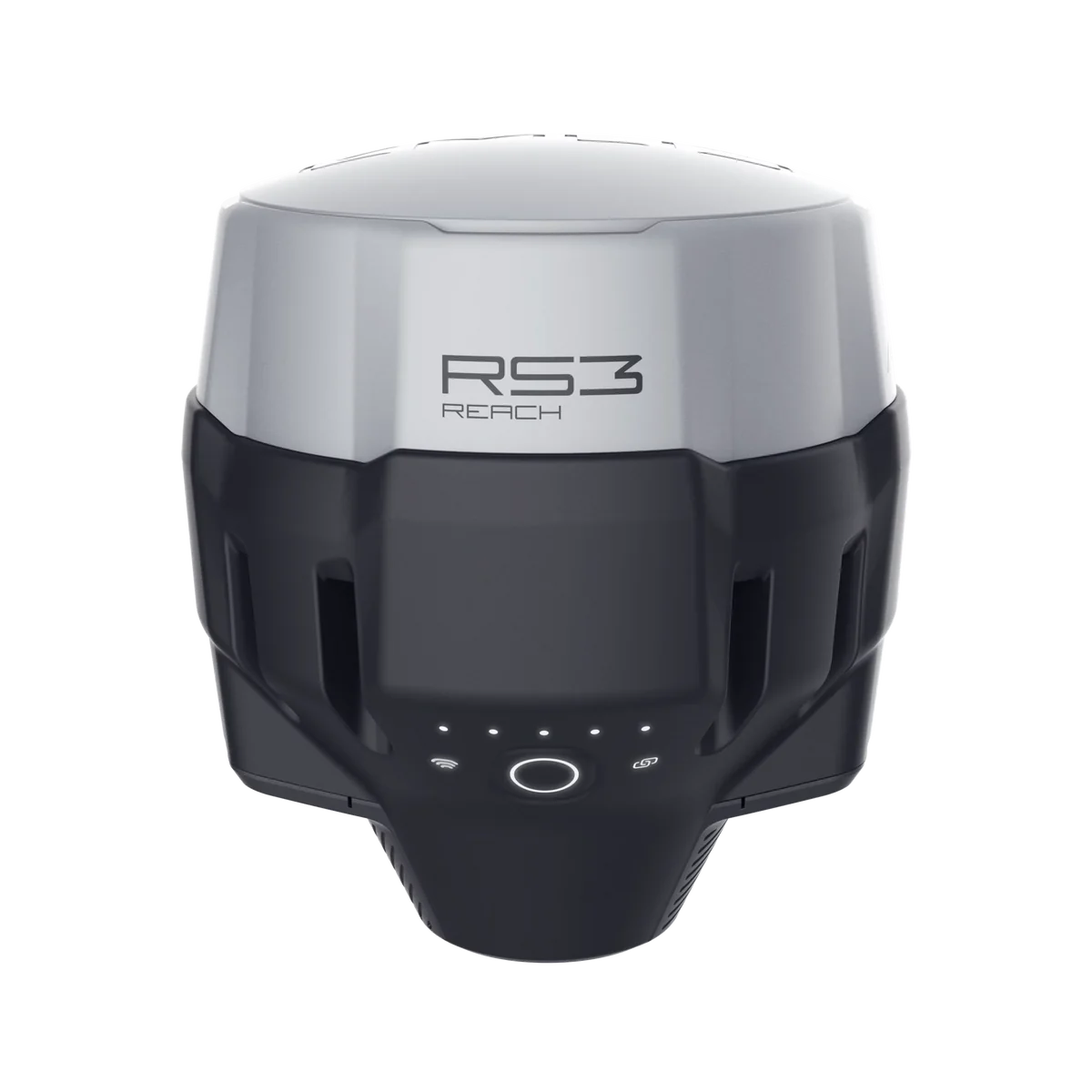

Reach RS3
A lower-cost base for an RS4 or RS4 Pro rover, with a free 1-year data SIM.
$2,999
View details
Complete base + rover bundles
A base and a rover for the job site, in one order.
RS4 Pro rover and RS4 base with carbon fiber poles, bipod, tripod, quick releases, bumpers and SIMs installed. Pick your field software.
Bundle with Flow Pro
RS4 Pro + RS4 bundle with Emlid Flow Pro
- RS4 Pro rover + RS4 base
- 2 bumpers + 2 one-year data SIMs, installed
- 2 quick releases · 2 carbon fiber poles
- Carbon fiber bipod + tripod
- Emlid Flow Pro, 1 year
$8,790$9,471
Save $681 vs. buying separately
See the bundle
Bundle with FieldGenius
RS4 Pro + RS4 bundle with FieldGenius
- RS4 Pro rover + RS4 base
- 2 bumpers + 2 one-year data SIMs, installed
- 2 quick releases · 2 carbon fiber poles
- Carbon fiber bipod + tripod
- FieldGenius perpetual license
$10,104$11,426
Save $1,322 vs. buying separately
See the bundle
ALSO AVAILABLEBumpers, poles and mounts →
| Feature | RS4 Pro | RS4 | RS3 |
|---|---|---|---|
| Works as | Base or rover | Base or rover | Base or rover |
| Camera AR stakeout | Dual HD cameras | No | No |
| IMU tilt compensation | Yes | Yes | Yes |
| GNSS bands | L1 / L2 / L5 / L6 | L1 / L2 / L5 / L6 | L1 / L2 |
| LoRa base link (no cell needed) | Yes | Yes | Yes |
| Corrections over | Built-in LTE, LoRa | Built-in LTE, LoRa | Built-in LTE, LoRa |
| Free bumper + data SIM from us | Yes | Yes | SIM only |
Independent review · The 3rd Dimension
Emlid RS4 Pro: worth the hype?
A full review of the RS4 Pro from The 3rd Dimension. Watch it before you decide.
More from The 3rd Dimension ↗Questions contractors ask us
Do I need to be a surveyor to use it?
No. If you can use a phone app, you can stake a point. Every receiver we ship is on the latest firmware, we will install and test the SIM on request, and our YouTube channel has setup videos. When you get stuck, call us at (901) 444-0804.
One line to know: layout for your own work is yours to do, but property lines and legal boundaries still need a licensed surveyor.
Does it replace my laser level?
It does a different job. A laser is still the quickest way to set a whole slab to one elevation. The RS4 tells you where things go and how far you are off grade, anywhere on the site, without a line of sight to a tripod. Many crews carry both.
Is this machine control for my excavator or dozer?
No. The RS4 and RS4 Pro are rovers you carry on a pole. They are for layout, grade checks, as-builts and topo, not for guiding a blade or a bucket.
Do I need a base, or can I use an RTK network?
For the best accuracy, we recommend your own base on site. A base also keeps working where there is no cell coverage, because it talks to the rover over the built-in LoRa radio.
Many users run a single rover on an RTK network instead: your state's network (it varies by state), Point One Navigation (we offer this), Emlid RTK corrections (1 year free with every receiver), and others. Corrections come over the internet, either from your phone or tablet's data or from a SIM card in the receiver. Every RS4 and RS4 Pro from us includes a free 1-year, 24 GB data SIM for exactly this.
Can I stake out from my plans?
Yes. Emlid Flow imports DXF files with points, lines and polygons, and design surfaces for grade checks. CAD drawings and surface stakeout need Emlid Flow Pro, which comes for a year in our RS4 Pro + RS4 bundle with Flow Pro. MicroSurvey FieldGenius does it too, with a perpetual license.
What comes free when I buy from 3D Mapping Tools?
A rubber protection bumper and a 1-year, 24 GB data-only SIM, with every RS4 and RS4 Pro. Ask at checkout and we will install and test the SIM in your base. Emlid also includes 1 year of RTK corrections.
Do you offer financing?
Yes, through Approve and BNC Finance. Apply online in a few minutes.
Tell us about your site work.
Foundations, pads, grading or utilities: tell us the job and we will spec the setup and send you a written quote.
