Emlid Reach RTK GNSS receivers
The Reach RS4, RS4 Pro, RX2 and RS3, complete base + rover bundles and the accessories to go with them, from a dealer that runs them in the field. Every receiver ships on the latest firmware.
- Free bumper + 1-year data SIM with every RS4 and RS4 Pro
- Plus 1 year FREE: Emlid RTK corrections
- Financing through Approve
- A real person at (901) 444-0804
The whole Reach lineup, side by side.
Torn between the RS4 and the RS4 Pro? The table below is the short answer. Call us for the long one.
Plus 1 year FREE: Emlid RTK corrections

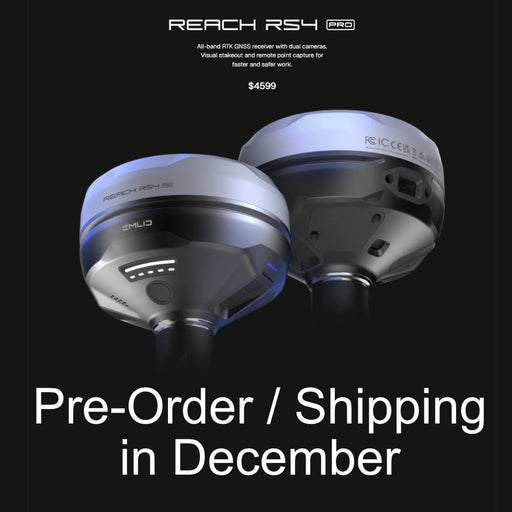

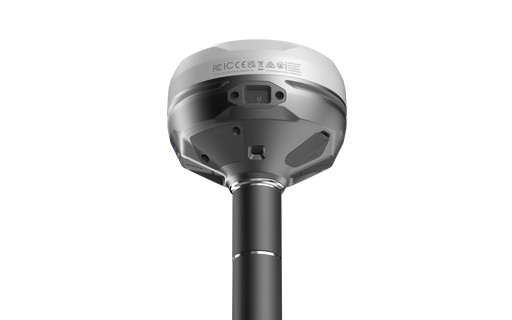

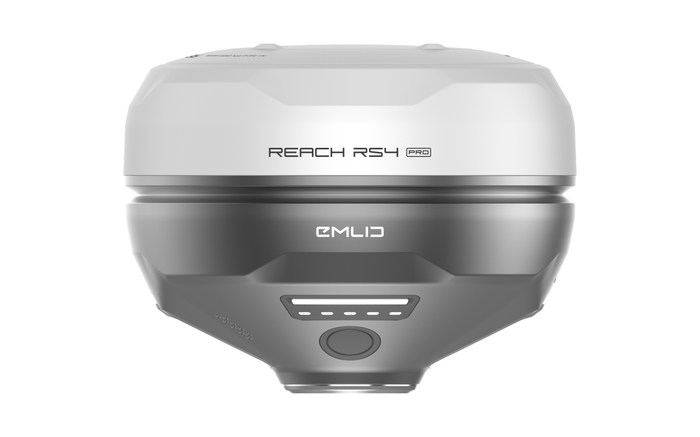

Reach RS4 Pro
Everything in the RS4, plus dual cameras for AR stakeout.

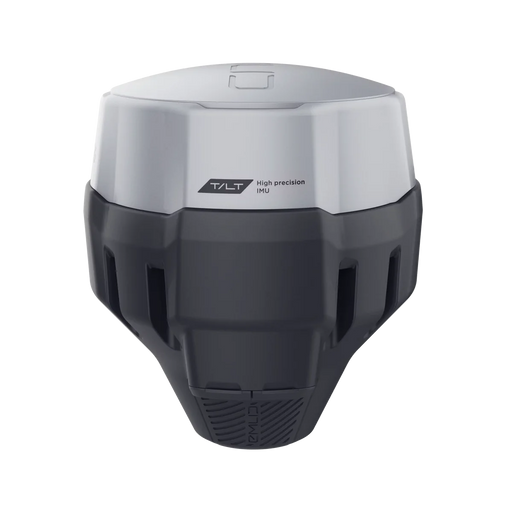

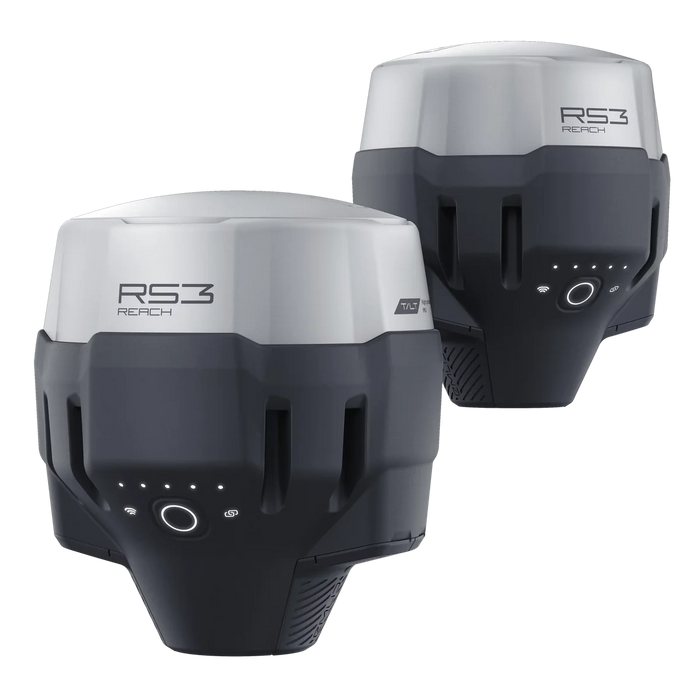

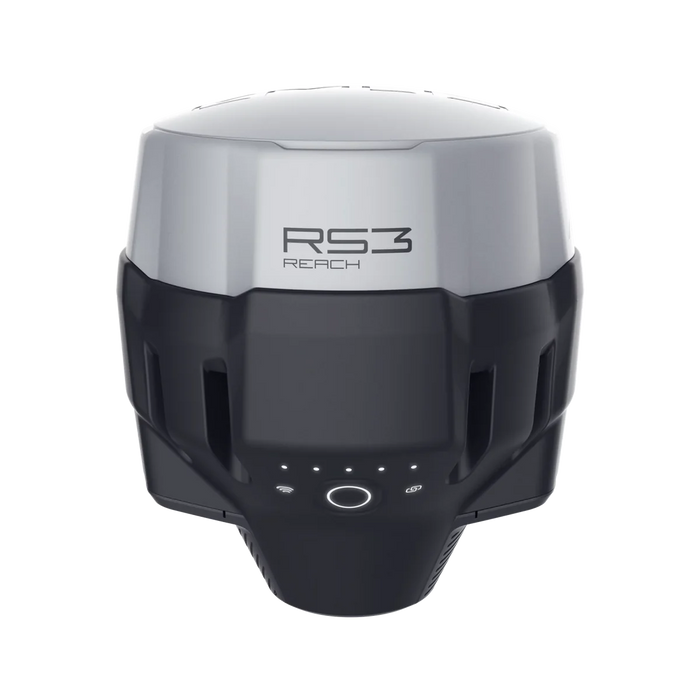

Reach RS3
The model before the RS4. A lower-cost base for an RS4 or RS4 Pro rover, with a free 1-year data SIM.
Everything a two-receiver crew needs, in one order.
RS4 Pro rover and RS4 base with carbon fiber poles, bipod, tripod, quick releases, bumpers and SIMs installed. Pick your field software.

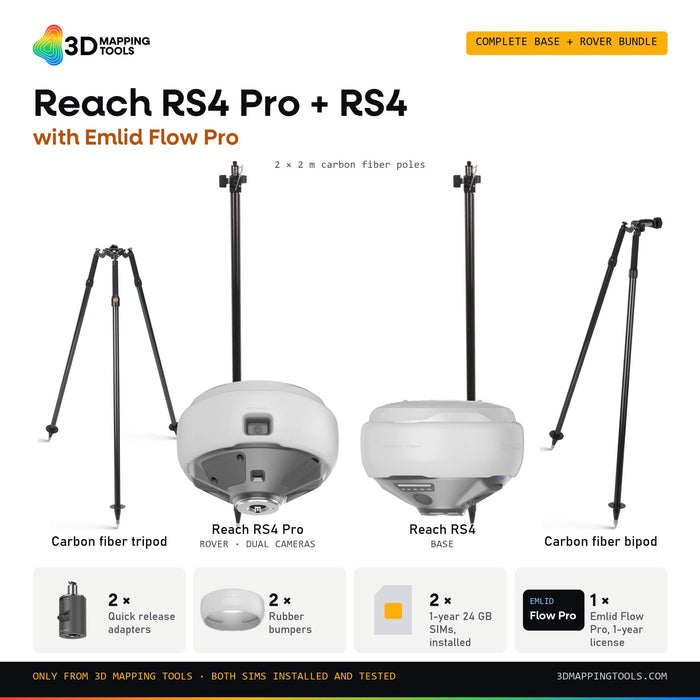

RS4 Pro + RS4 bundle with Emlid Flow Pro
- RS4 Pro rover + RS4 base
- 2 bumpers + 2 one-year data SIMs, installed

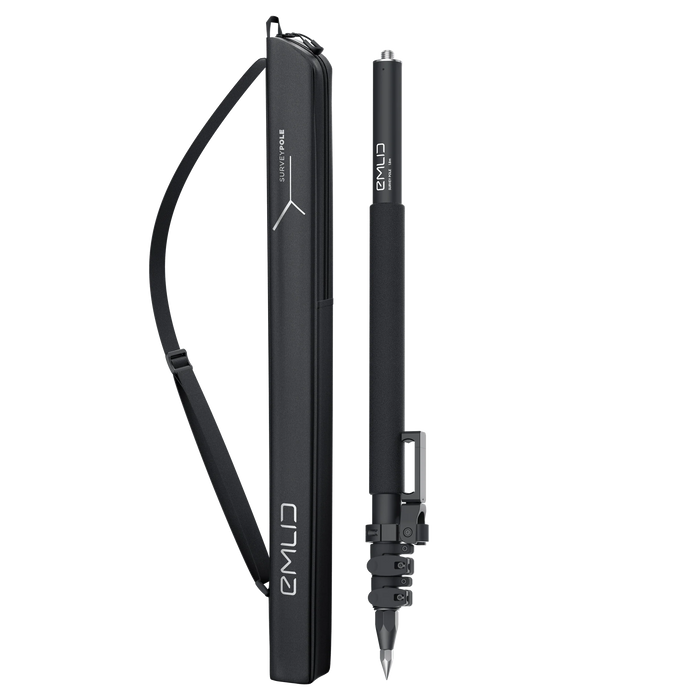

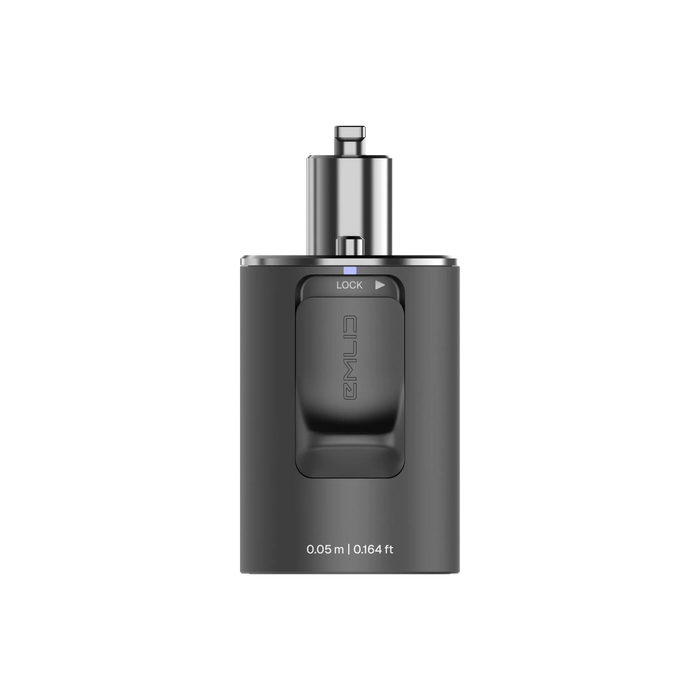

- 2 quick releases · 2 carbon fiber poles
- Carbon fiber bipod + tripod
- Emlid Flow Pro, 1 year

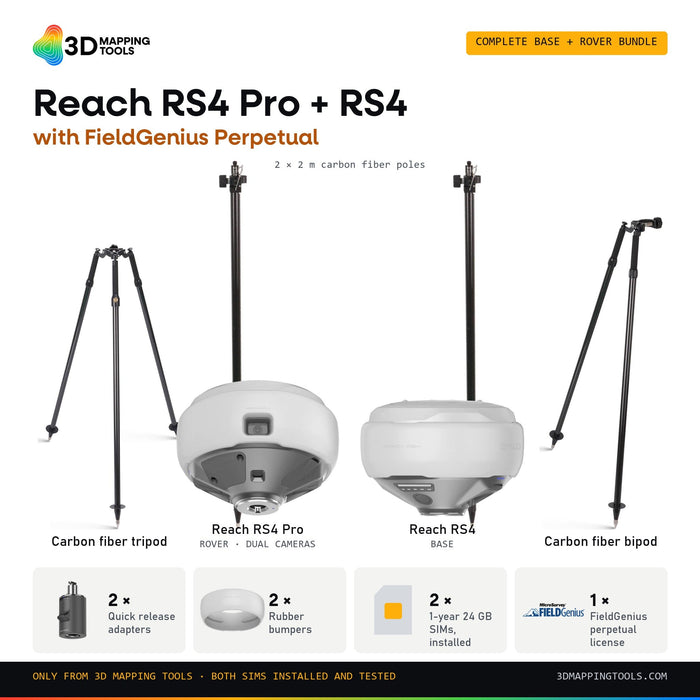

RS4 Pro + RS4 bundle with FieldGenius
- RS4 Pro rover + RS4 base
- 2 bumpers + 2 one-year data SIMs, installed
- 2 quick releases · 2 carbon fiber poles
- Carbon fiber bipod + tripod
- FieldGenius perpetual license

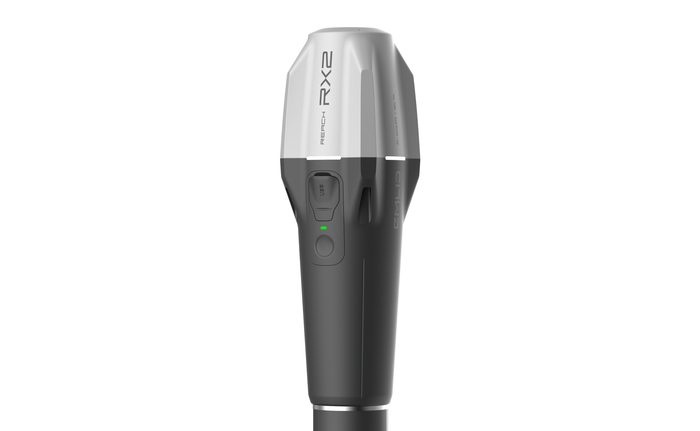

| Feature | RX2 | RS4 | RS4 Pro | RS3 |
|---|---|---|---|---|
| Works as | Rover only | Base or rover | Base or rover | Base or rover |
| GNSS bands | L1 / L2 / L5 / L6 | L1 / L2 / L5 / L6 | L1 / L2 / L5 / L6 | L1 / L2 |
| IMU tilt compensation | Yes | Yes | Yes | Yes |
| Camera AR stakeout | No | No | Dual HD cameras | No |
| LoRa base link | No | Yes | Yes | Yes |
| Corrections over | Your phone (NTRIP) | Built-in LTE, LoRa | Built-in LTE, LoRa | Built-in LTE, LoRa |
| Free bumper + data SIM from us | N/A | Yes | Yes | SIM only |
Emlid RS4 Pro: worth the hype?
A full review of the RS4 Pro from The 3rd Dimension, one of YouTube's best channels for surveyors. Watch it before you decide.
More from The 3rd Dimension ↗Every Emlid GNSS product
Save $681
Save $1,322Not sure which one fits your work?
Tell us the job and we will spec the kit.
Run your Emlid with FieldGenius.
FieldGenius is MicroSurvey's data collector for Android and Windows. It runs your Reach receivers and a total station from one map screen, and the perpetual license is yours to keep.
- GNSS and total station in one app
- Curves, arcs and field-to-finish linework
- Surface staking with cut and fill
- COGO, traverse, grid-to-ground
- Works with most receiver brands
- Same workflow on Android and Windows
Questions we get about Emlid receivers
What comes free when I buy from 3D Mapping Tools?

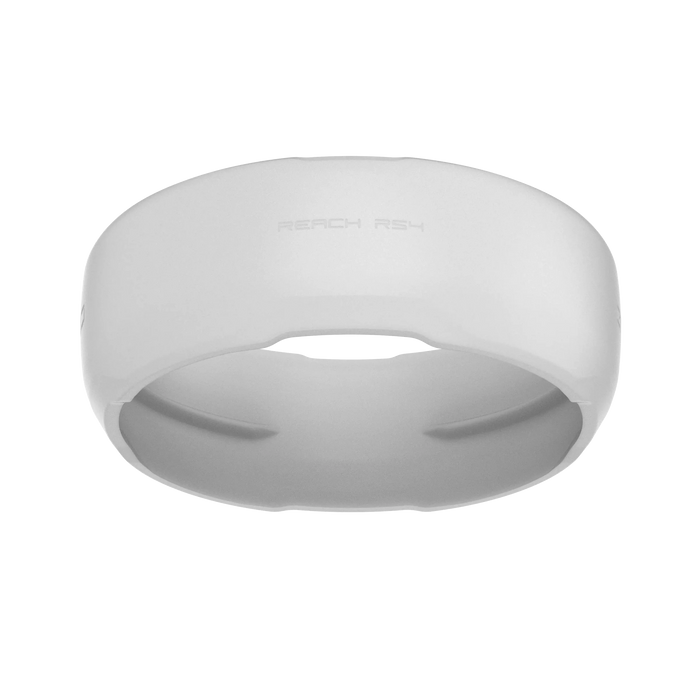

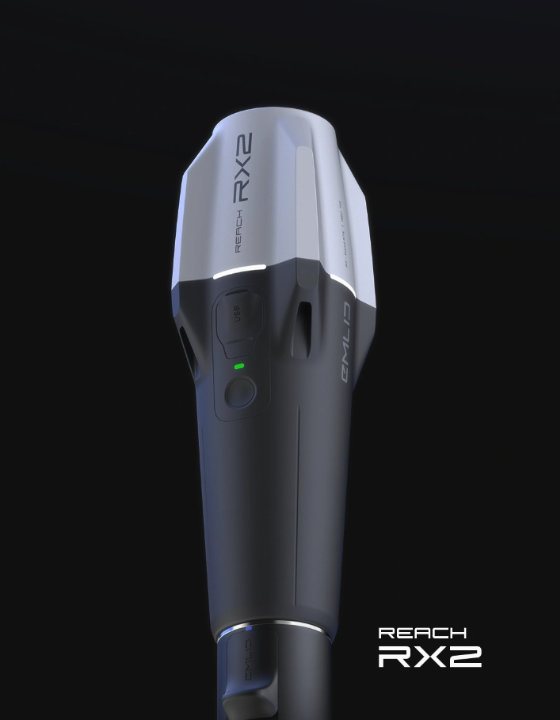

A rubber protection bumper and a 1-year, 24 GB data-only SIM, with every RS4 and RS4 Pro. The RX2 runs on your phone’s data over Bluetooth, so it needs neither. Ask at checkout and we will install and test the SIM in your base. Emlid also includes 1 year of RTK corrections.
Do I need a base, or can I use an RTK network?
For the best accuracy, we recommend your own base on site. A base also keeps working where there is no cell coverage, because it talks to the rover over the built-in LoRa radio.
Many users run a single rover on an RTK network instead: your state's network (it varies by state), Point One Navigation (we offer this), Emlid RTK corrections (1 year free with every receiver), and others. Corrections come over the internet, either from your phone or tablet's data or from a SIM card in the receiver. Every RS4 and RS4 Pro from us includes a free 1-year, 24 GB data SIM for exactly this.
Can the RS4 be my base and my rover?

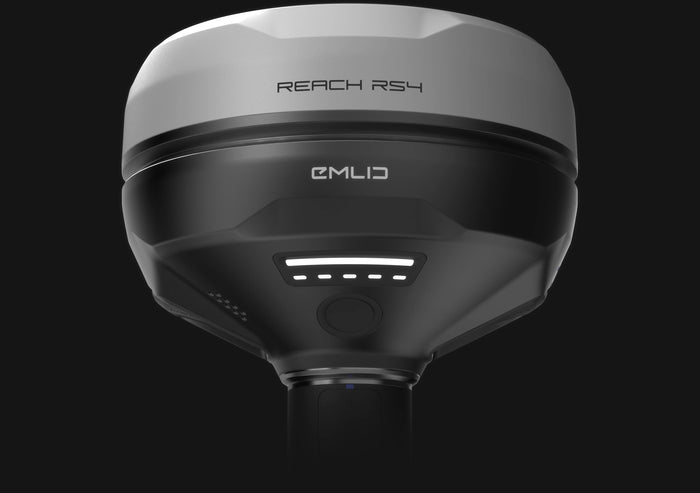

Yes, it works as either. Many crews pair an RS4 base with an RS4 Pro rover. On a tighter budget, an RS3 base with an RS4 or RS4 Pro rover is a solid setup too.
Which field software works with it?
Emlid Flow and MicroSurvey FieldGenius. Emlid Flow Pro covers the survey features most users need. FieldGenius is a full survey app: COGO, curves, offsets, surface staking and total station support, plus much more. It is sold as an annual or a perpetual license.
Do you offer financing?
Yes, through Approve and BNC Finance. Apply online in a few minutes, or use the Finance button above to apply for this item.
Can you help me get it working?
Yes. Every Emlid receiver we ship is updated to the latest firmware and ready for the field. On request, we will install and test your SIM in the base before it ships.
Our YouTube channel has setup videos, with more coming that cover every feature of Emlid Flow Pro. And when you have a question, call us at (901) 444-0804.
